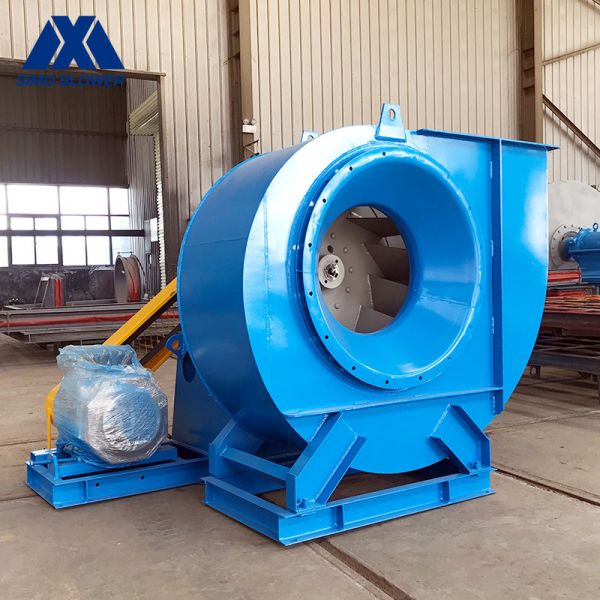

Long Life Forward Alloy Steel Oven Wall Cooling Centrifugal Flow Fan
Introduction
1. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.
2. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
3. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
4. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
5. There are a variety of accessories to choose from.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 4-10 | 8C | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9C | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 |
| 10C | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 |
| 11C | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 |
| 12C | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 |
| 14C | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 |
| 16C | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 |
| 18C | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 |
| 20C | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 |
| 22C | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 |
| 25C | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 |
| 28C | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 |
| 29.5C | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
