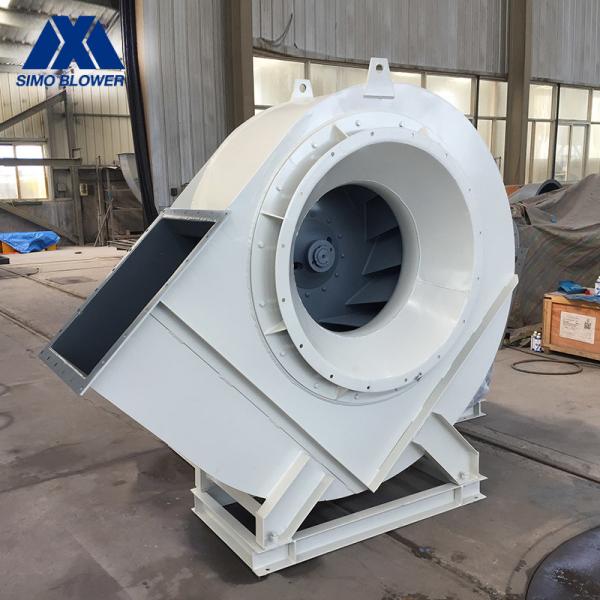

V-Belt Driven High Temperature Material Handling Blower Centrifugal Fan

  • 1
  • 2
  • 3

Brand Name : SIMO

Model Number : SIMO Blower 5-12

Certification : CE, ISO9001:2008,TUV

Place of Origin : Henan China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Payment Term Is Negotiable

Supply Ability : 500 Sets Per Month

Delivery Time : 15-35 Days

Packaging Details : Export Wooden Case Packing, Steel pallet Packing

Material : Carbon Steel/Alloy Steel/Stainless Steel

After-sales Service Provided : Field installation, commissioning and training

Voltage : 380V/415V/440V/660V/6KV/10KV

Main shaft : High-strength carbon structural steel

Motor type : Three Phase AC Motor

Impeller Support : SWSI (Single Width, Single Inlet), Impeller overhung

Contact Now

V-Belt Driven High Temperature Material Handling Blower Centrifugal Fan

Introduction

The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.

Mainly circulating fluidized bed system, smoke exhaust, material drying, industrial dust collector / filtration system, flue gas desulfurization, flue gas denitrification, industrial boiler induced air, cement production line, industrial waste heat recovery device, mineral powder sintering ( sintering machine), Coke production (coking furnace), etc, is especially suitable for various harsh conditions such as high temperature, wear and corrosion.

Technical data

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
5-12 4C 2500～3550 742～2221 2065～5564 2.2～5.5
5C 2240～3150 964～2819 3772～9851 4～11
6.3C 2000～2800 1221～3545 6737～17516 7.5～22
8C 1400～2000 1100～3323 9656～25619 11～30
10C 1250～1800 1419～4483 15451～44634 22～75
12.5C 1000～1400 2145～4234 24143～67803 37～110


FAQ

1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A : A:5-35 days.

3,Q : What’s your payment terms?

A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?

A: We have our own factory, our type is factory +trade.
