High Pressure V-Belt Driving Blast Furnace Power Plant Fan
Introduction Of Centrifugal Fan
The 9-10 series high pressure fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
Product Advantages
1. The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
2. Running test and vibration value detection after the production is completed, the fan operation is reliable.
3. It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 9-10 | 8C | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9C | 1450 | 4101～4597 | 4695～10717 | 15～22 |
| 10C | 1450 | 4958～5840 | 6440～15455 | 30～37 |
| 11.2C | 960～1450 | 2705～7364 | 5990～21713 | 15～75 |
| 12.5C | 960～1450 | 3975～9229 | 8327～30186 | 22～110 |
| 14C | 960～1450 | 4249～11668 | 11699～42409 | 37～220 |
| 16C | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
Product Tags:
|
|

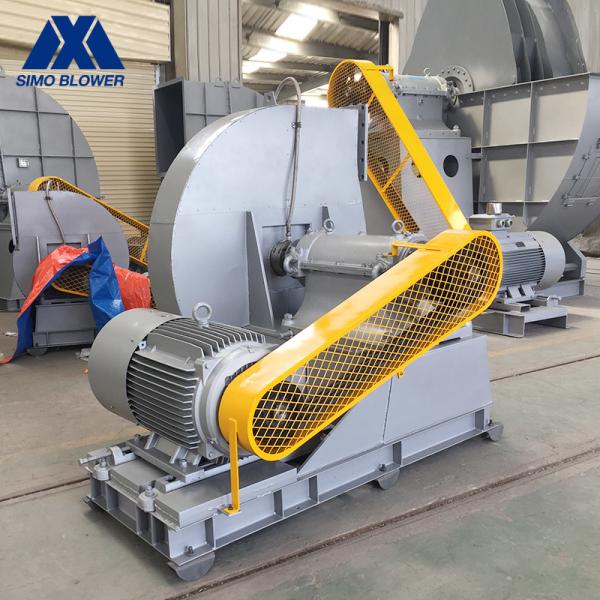

High Pressure V Belt Driving Blast Furnace Power Plant Fan Images
|
