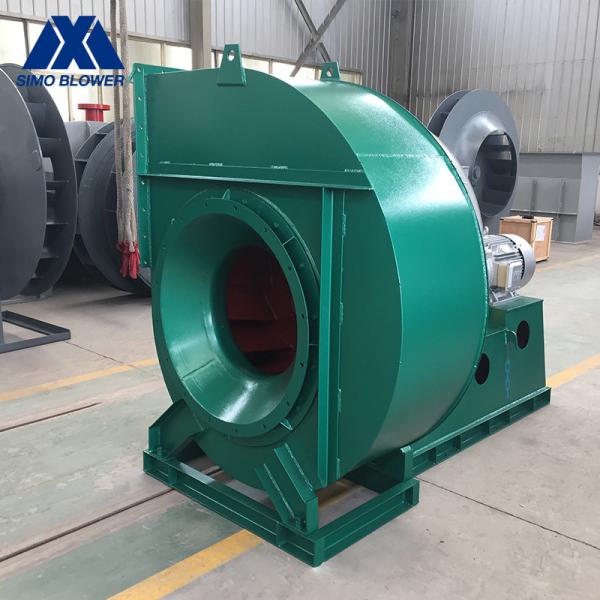

Carbon Steel Long Life Low Pressure Air Purification Explosion Proof Blower Fan
Product Features
The 4-10 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 4-10 | 8D | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 |
| 10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 |
| 11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 |
| 12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 |
| 14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 |
| 16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 |
| 18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 |
| 20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 |
| 22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 |
| 25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 |
| 28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 |
| 29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Advantages
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.
6. After the production is completed, all products are tested for running and vibration values for reliable operation.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
