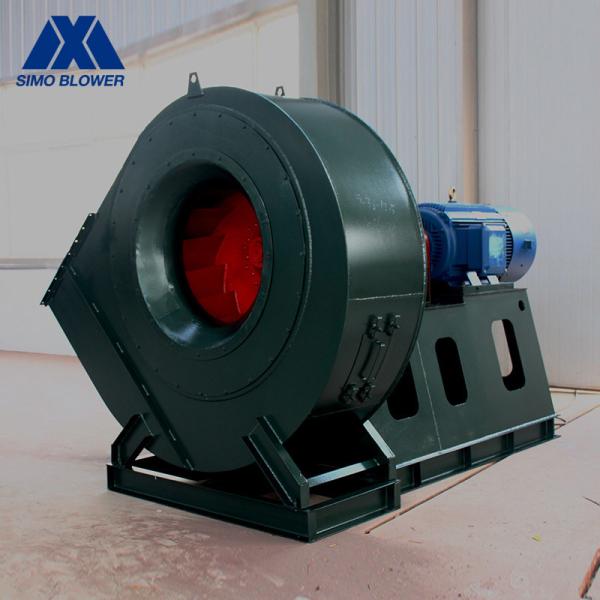

Double Suction Energy Saving Exhaust Material Handling Blower
Introduction
It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.
It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.
Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.
Before the induced draft fan, dust removal device with a dust removal efficiency of no less than 85% must be installed to reduce the dust content of the smoke entering the fan.
It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.
Technical data
| series | model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
| 9-11 | 4D | 2900 | 2285～2452 | 3297～6594 | 5.5～7.5 |
| 4.5D | 2900 | 2893～3060 | 4695～9389 | 11～15 |
| 5D | 2900 | 3570～3854 | 6440～12880 | 15～22 |
| 5.6D | 2900 | 4482～4805 | 9048～18095 | 30～45 |
| 6.3D | 1450 | 1422～1500 | 6441～12882 | 7.5～11 |
| 7.1D | 1450 | 1804～1942 | 9220～18439 | 11～18.5 |
| 8D | 1450 | 2285～2462 | 13189～26378 | 18.5～30 |
| 9D | 1450 | 2893～3099 | 18779～37558 | 37～55 |
| 10D | 1450 | 3570～3854 | 25760～42933 | 55～90 |
| 11.2D | 960～1450 | 1961～4835 | 23961～72381 | 30～160 |
| 12.5D | 730～960 | 1412～2638 | 25329～66620 | 22～90 |
| 14D | 730～960 | 1775～3305 | 35586～93596 | 45～160 |
| 16D | 730～960 | 2314～4295 | 53120～139712 | 75～280 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
