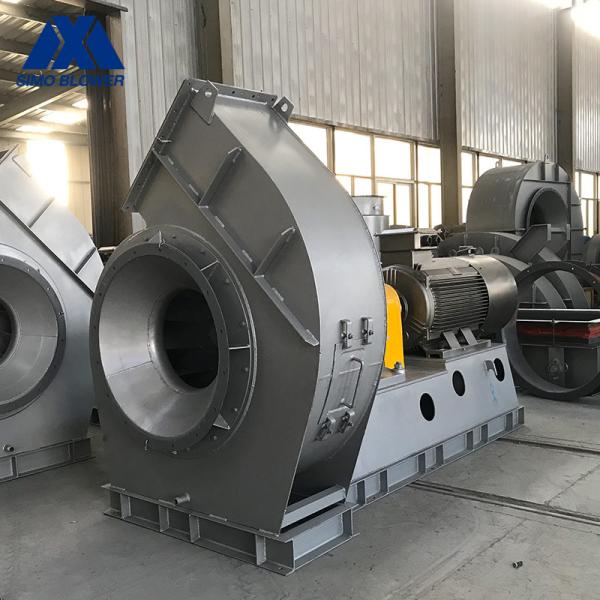

HG785 Alloyed Steel Backward Air Purification Material Handling Blower

  • 1
  • 2
  • 3

Brand Name : SIMO

Model Number : SIMO Blower 6-06

Certification : CE, ISO9001:2008,TUV

Place of Origin : Henan China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Payment Term Is Negotiable

Supply Ability : 500 Sets Per Month

Delivery Time : 15-35 Days

Packaging Details : Export Wooden Case Packing, Steel pallet Packing

Material : Carbon Steel/Alloy Steel/Stainless Steel

Drivetrain : Direct/Coupling Driven/V-belt Driven

After-sales Service Provided : Field installation, commissioning and training

Motor : SIEMENS/ABB/By your demand

Main shaft : High-strength carbon structural steel

Bearing cooling : Air cooling or Circulating Water cooling

Contact Now

HG785 Alloyed Steel Backward Air Purification Material Handling Blower

Introduction

6-06 series fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.

They are used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.

Suitable for flow and dust removal ventilation systems in high pressure heads.

Technical data

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
6-06 8D 1450 1859～2745 11000～26400 15 ~ 22
9D 1450 2353～3474 15700～37500 30 ~ 45
10D 1450 2905～4289 21500～51500 45 ~ 75
11D 960 ~ 1450 1541～5190 22700～68500 22 ~ 110
12D 960 ~ 1450 1834～6176 24600～89000 37 ~ 160
13D 960 ~ 1450 2152～7248 31200～113000 55 ~ 250
14D 960 ~ 1450 2496～8406 39000～141000 75 ~ 400
15D 730 ~ 1450 1657～9650 36600～172000 45 ~ 500
16D 730 ~ 1450 1885～10980 44300～211000 75 ~ 710
17D 730 ~ 960 2128～5433 53200～168000 90 ~ 280
18D 730 ~ 960 2386～6091 63100～199000 110 ~ 355
19D 730 ~ 960 2658～6787 74200～234000 160 ~ 500
20D 730 ~ 960 2946～7520 86700～273000 200 ~ 630
21D 580 ~ 960 2050～8290 79500～316000 200 ~ 800
22D 580 ~ 960 2250～9099 92200～363000 220 ~ 1000
23.5D 580 ~ 960 2567～10380 112000～443000 220 ~ 1400
25D 580 ~ 730 6794～6464 134000～406000 355 ~ 800
26.5D 480 ~ 730 2236～7633 132000～483000 220 ~ 1120
28D 480 ~ 730 2496～8522 156000～569000 315 ~ 1400
29.5D 480 ~ 730 2771 ~ 9460 183000～667000 400 ~ 2000


FAQ

1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A : A:5-35 days.

3,Q : What’s your payment terms?

A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?

A: We have our own factory, our type is factory +trade.

HG785 Alloyed Steel Backward Air Purification Material Handling Blower

HG785 Alloyed Steel Backward Air Purification Material Handling Blower

HG785 Alloyed Steel Backward Air Purification Material Handling Blower
